Gallery widget

The Image Gallery widget allows you to easily add and style complex and beautiful image galleries on your page.

Content

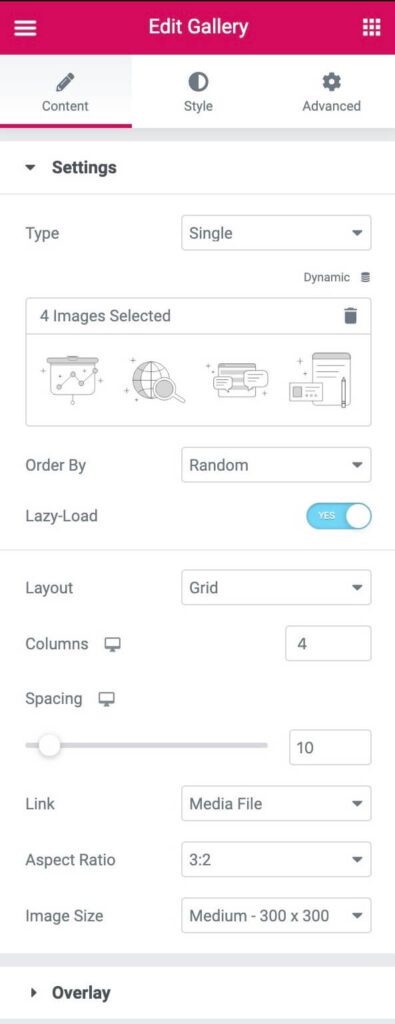

Settings

Type: Select type of gallery, choosing from Single or Multiple. Multiple allows you to have a filterable portfolio-style gallery of images
1. If Multiple is chosen, enter a title into the field or use Dynamic Tags *

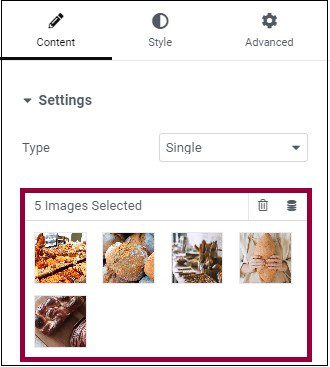

Add Images: Choose multiple images from the media library to insert into your gallery and type a Title for the gallery
1. You may also use the Dynamic Tags option to load images from the Post image attachments, Advanced Custom Field gallery, or WooCommerce product gallery. This is helpful when creating a Single Post or Product template in the Theme builder
Order By: Choose Default or Random order
Lazy-Load: Set to Yes to use Lazy Load to improve loading speed.
Layout: Select from Grid, Justified, or Masonry.The Grid is based on an aspect ratio of your choosing. Justified lets you set the height for each row, and adjusts to different widths per image. Masonry maintains the same image width and adjust to varying heights.
Columns: Set how many columns will be displayed per row, from 1 to 24. Not available if Justified Layout is chosen.
Row Height: Set the height of each row, in pixels. Only available if Justified Layout is chosen.
Spacing: Control the amount of space between each image in a row.
Link: Set the link for the images to None, Media File, or Custom URL
Aspect Ratio: Choose the Aspect Ratio, selecting from 1:1, 3:2, 4:3, 9:16, 16:9, and 21:9. Only available for Grid layout.
Image Resolution: Set the size of the image, from thumbnail to full, or enter a custom size.

If Type: Multiple is chosen, the following Filter Bar additional options become available:

Filter Bar (only available if Multiple type is chosen)

“All” Filter: Select Yes to include the “All” filter, or No to exclude it.
“All” Filter Label: If set to Yes, enter the desired label or use Dynamic Tags. “All” is default.
Pointer: Select the pointer used when hovering over each filter label. Choose from None, Underline, Overline, Double Line, Framed, Background, or Text.
Animation: Set the Pointer’s animation style. Choose from Fade, Slide, Grow, Drop In, Drop Out, or None.

Overlay

Background: Select Yes to have an overlay appear upon hovering over each image, or No for no overlay.
Title: Choose which meta attribute to display as the overlay’s Title. Select from the image’s Title, Caption, Alt, Description, or None.
Description: Choose which meta attribute to display as the overlay’s Description. Select from the image’s Title, Caption, Alt, Description, or None.

Style


Border Color: Choose the color of the image border, for Normal and Hover states
Border Width: Choose the thickness of the border for Normal state only.
Border Radius: Control the corner roundness of the image border, for Normal and Hover states.
CSS Filters: Set CSS Filters, selecting from Blur, Brightness, Contrast and Saturation for Normal and Hover states.
Hover Animation: Choose the animation of the image upon hover, selecting from None, Zoom In, Zoom Out, Move Left, Move Right, Move Up, or Move Down, for Normal and Hover states.
Animation Duration (ms): Set the amount of time the animation takes, in milliseconds.

Overlay

Overlay: Select the type of Overlay (Classic or Gradient) for the images’ Normal and Hover states.
Color: Set the Overlay color or gradient colors for the images’ Normal and Hover states.
Blend Mode: Select from multiple layer effects including Normal, Multiply, Screen, Overlay, etc. View Blend Mode demo
Hover Animation: Choose the overlay’s Entrance or Exit animation upon hover. Select from Slide In Right, Slide In Left, Slide In Up, Slide In Down, Zoom In, Zoom Out, and Fade In. If Entrance Animation is chosen, images are shown full opacity in Normal state, with the overlay covering the image upon hover. If Exit Animation is chosen, the overlay covers the image in the Normal state, and is removed upon hover.
Animation Duration (ms): Set the amount of time the animation takes, in milliseconds.

Content

Alignment: Align the content to the left, right, or center
Vertical Position: Align the content to the top, middle, or bottom
Padding: Adjust the content’s padding

Title

Color: Choose the Title’s color
Typography: Set the typography options for the Title
Spacing: Set the amount of space between the Title and the Description

Description

Color: Choose the Description’s color
Typography: Set the typography options for the Description

Hover Animation: Choose the content’s Entrance, Reaction, or Exit Animation upon hover. For Entrance Animation, select from Slide In Right, Slide In Left, Slide In Up, Slide In Down, Zoom In, Zoom Out, and Fade In. For Reaction Animation, select from Grow, Shrink, Move Left, Move Right, Move Up, or Move Down. For Exit Animation, select from Slide Out Right, Slide Out Left, Slide Out Up, Slide Out Down, Zoom In, Zoom Out, and Fade Out.
Animation Duration: Set the amount of time the animation takes, in milliseconds.
Sequenced Animation: Set to Yes to have Title and Description animate in sequence. Set to No to have Title and Description animate at the same time.

Filter Bar

These Filter Bar additional options become available only if Type: Multiple was chosen.

Text Color: Choose the color of the Filter bar text for Normal, Hover, and Active states.
Typography: Set the typography options for the Filter bar text.
Pointer Color: Choose the color of the Filter bar pointer. Only available in Hover or Active states.
Pointer Width: Select the thickness of the pointer.
Space Between: Control the amount of space between Filter text items.
Gap: Control the amount of space between the Filter text and the gallery images.

Advanced

Set the Advanced options that are applicable to this widget

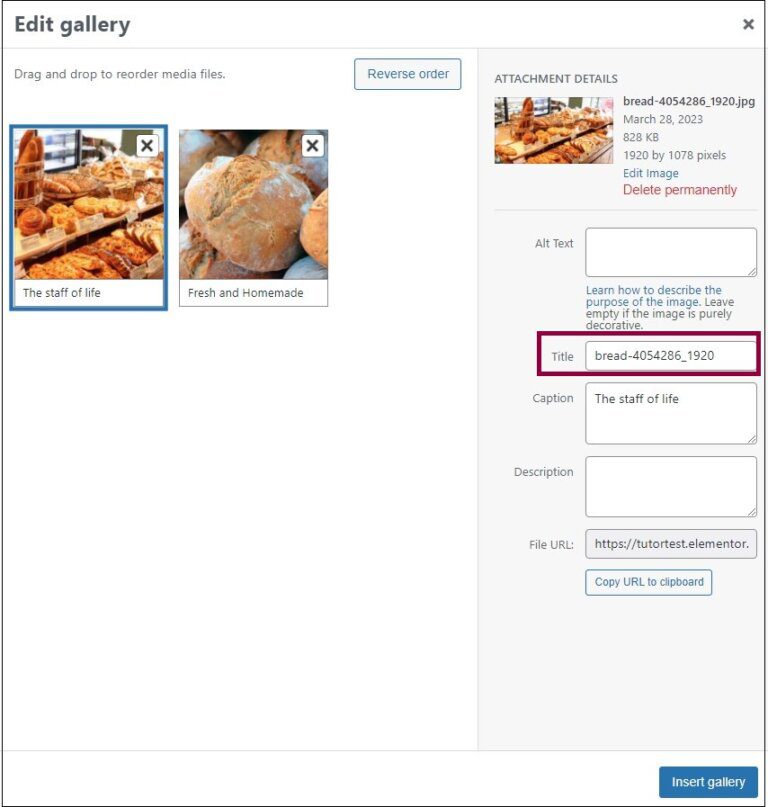

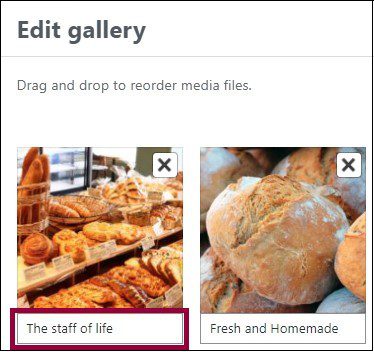

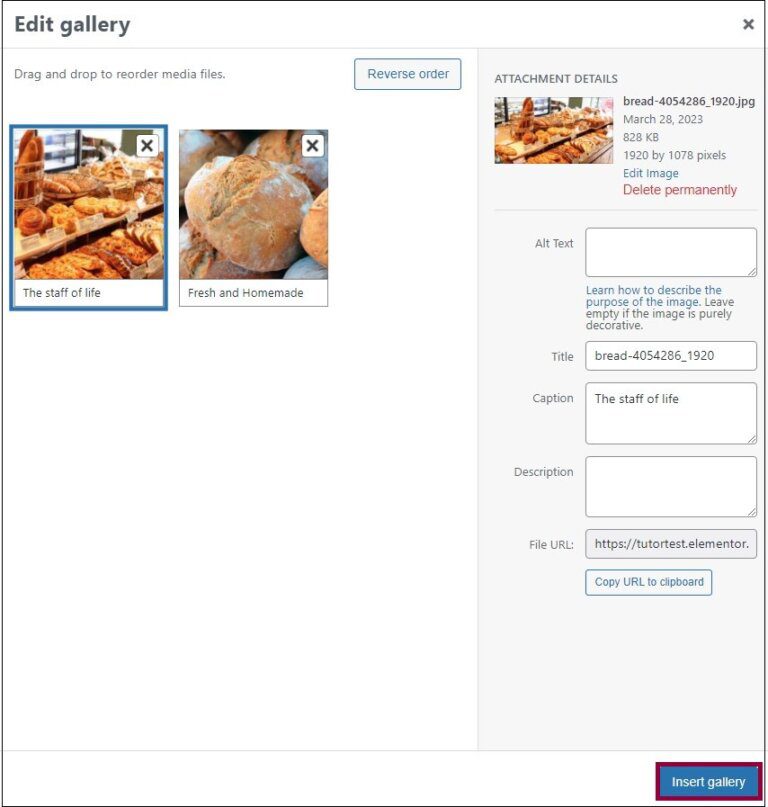

Captions and titles in a gallery

The Gallery widget allows you to display an image’s caption or title as part of the overlay. However, these captions/titles may not be suitable for the Gallery widget, so users have the ability to edit the captions/titles of the images displayed in the widget.
